KGM瑞∣红岩酒店阁楼套间
项目位置：拉斯维加斯美国Las Vegas NV
Goals: Integrate lighting into the architecture; minimize decorative fixtures and visibility of lighting equipment.
Track mounted adjustable low-voltage MR-16 accent lights are mounted within slots in the wood ceiling panels. Linear 2400K led striplights hidden in coves define the separation of floor and ceiling planes. 5000K led striplights produce and intentional gradient of light on the sandblasted glass bar die and circular column.
Lighting is controlled with a central dimming system dedicated to each suite.
可调角低压MR16轨道灯被安装在木头天花板的条形槽中。2400K的LED条形灯隐藏在线槽中，作为地板和天花上不同材质的分隔线。5000K的LED条形灯为磨砂玻璃的吧台侧面提供了渐变的灯光晕染效果。
照明通过每个套间的中央调光系统进行控制。
Goals: Integrate lighting into the architecture; minimize decorative fixtures and visibility of lighting equipment.
The green sandblasted wall (in the background) separates the dining area from the public corridor.
A continuous low-voltage halogen wall grazing striplight illuminates the glass, providing adjustable levels of brightness and privacy via the centralized dimming system.
Linear 2400Kled striplights are concealed with translucent acrylic diffusers to illuminate the 2” gap below the gold-fabric ceiling panels.
远处那面绿色磨砂墙面将餐厅从公共走道区域分离开来。连续的洗墙条形灯照亮该玻璃面，并通过中央调光系统提供了可调节的亮度等级及私密感。
2400K LED线性灯隐藏在半透明亚克力匀光罩后方，用来照亮金色织物天花板下方的2英寸槽口。
Goals: Integrate lighting into the architecture; minimize the visibility of lighting equipment.

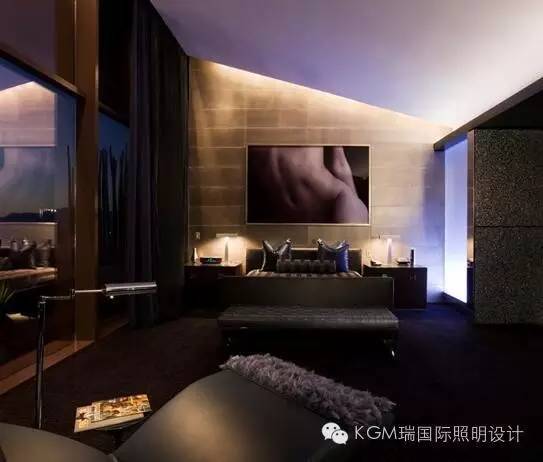

RGB ledstriplights illuminate the white sloping ceiling. Color changes via the lighting playback controller which is integrated into the suite’s centralized dimming system.
Bus mounted low voltage MR16 accent lights with linear spreadlenses are mounted at 8” on center within the sloping cove at the semi-specular leather panel wall.
The ceiling is intentionally void of downlights. Low-level table and floor lamps provide task lighting and accents.
A 5 degree, 5000K white led striplight provides the gradient on the sandblasted glass wall panel.
RGB LED条形灯照亮了白色斜屋顶。灯光颜色通过灯光播放控制器进行变换，该控制器也整合进套间的中央调光系统。
车载低压MR16重点投射灯配合线性扩展滤镜，被安装在半镜面皮革面板墙的斜面槽口中，该槽口有8英寸宽。（注：床头背景墙位置）
整个天花没有一处下照灯。低亮度的台灯和落地灯提供了工作面照明和重点照明。
一个5°配光角，5000K的白色LED条形灯提供了磨砂玻璃墙的均匀褪晕灯光效果。
Goals: Integrate lighting into the architecture; minimize the visibility of lighting equipment.

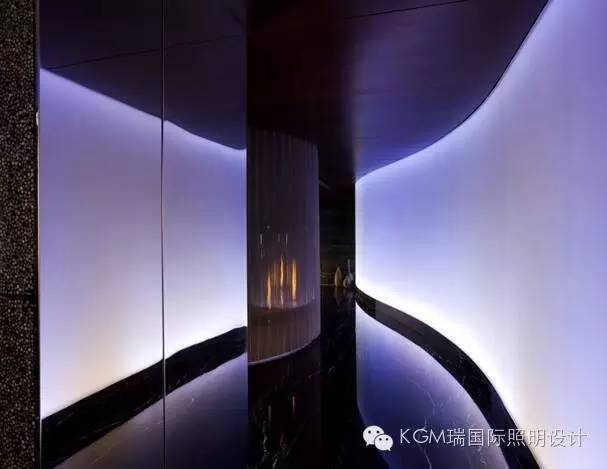

This "black" suite is defined with various dark materials, most with highly specular finishes. Backlit glass planes reflect in these surfaces, expanding the perceived depth of the space. The curved, sandblasted glass wall on the right side of this entry hall is illuminated from the floor with two rows of led striplights concealed behind a polished stainless steel access panel. A wide beam, 3000K white led produces a warmer light at the bottom edge, while a narrow beam, 5000K white led providesan intentional gradient of both intensity and color.
这个“黑色”套间采用多种深色材料，大多数都是接近镜面反射表面。采用发光灯箱做法的玻璃板反射在这些表面，延伸了空间的感知深度。右边这面曲面磨砂玻璃墙采用背后的两排LED条形灯照亮，条形灯被隐藏在底部的抛光不锈钢条后方。其中一排LED采用宽光束3000K白光，在底部营造稍温暖的灯光，另一排采用窄光束5000K白光，为整面墙体提供均匀的灯光褪晕效果。
Goals: Integrate lighting into the architecture; minimize the visibility of lighting equipment.

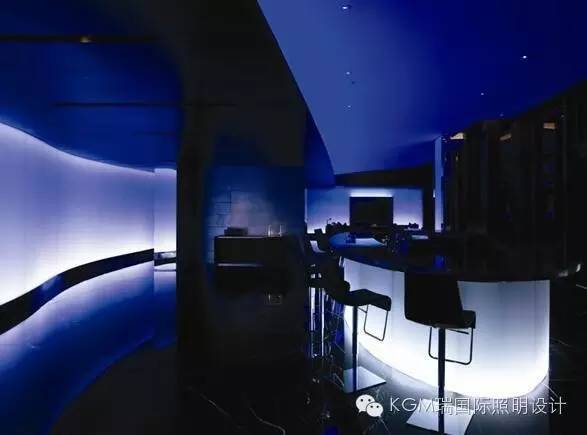

The flat media wall (background right) is illuminated in the same manner as the curved entry wall. An additional 5000K white striplight provides a short gradient along the top of the inset TV.
The sloped white ceiling is illuminated with an RGB led striplight (pale blue in this image). Color changes via the lighting playback controller which is integrated into the suite’s centralized dimming system.
Recessed, flush trim MR16 pinhole adjustable accent lights illuminate the bar top. Track mounted adjustable low-voltage MR-16accent lights are mounted within slots in the dark wood ceiling panels on the left.
画面右后方的媒体立面墙采用和入口处曲面墙一样的照明手法。只在壁挂式电视的顶部加了一条5000K白光的线性灯带。
倾斜的白色天花板采用RGB LED灯带打亮（图中为浅蓝色灯光）。灯光颜色可通过灯光播放控制器进行变换，该控制器也整合进套间的中央调光系统。
吧台面采用嵌入式平边小孔可调角MR16投射灯打亮。左侧的木头天花板开设了数条线槽，用以安装可调角低压MR16轨道射灯。
